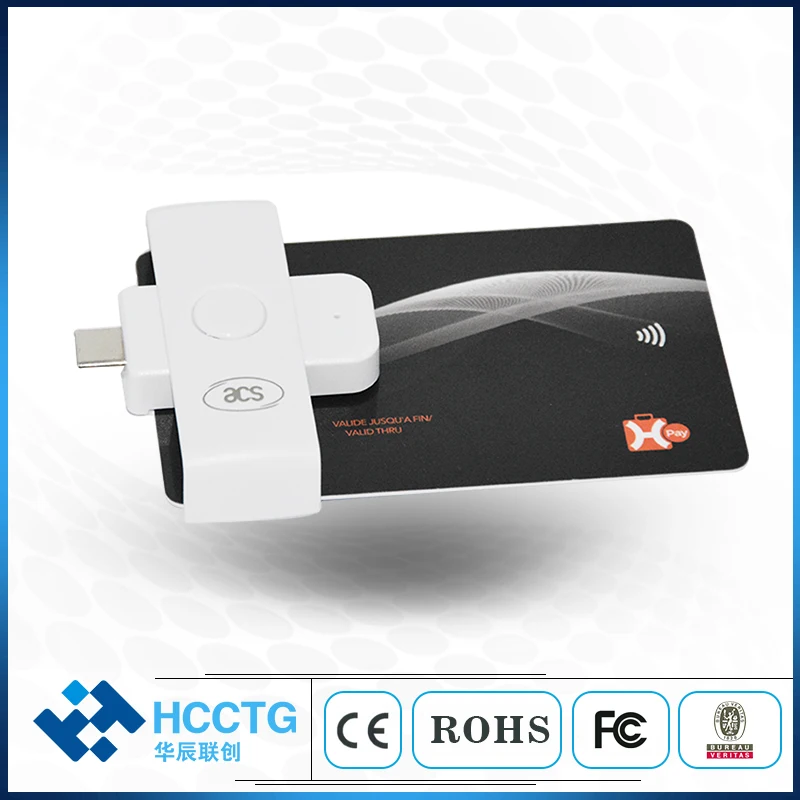

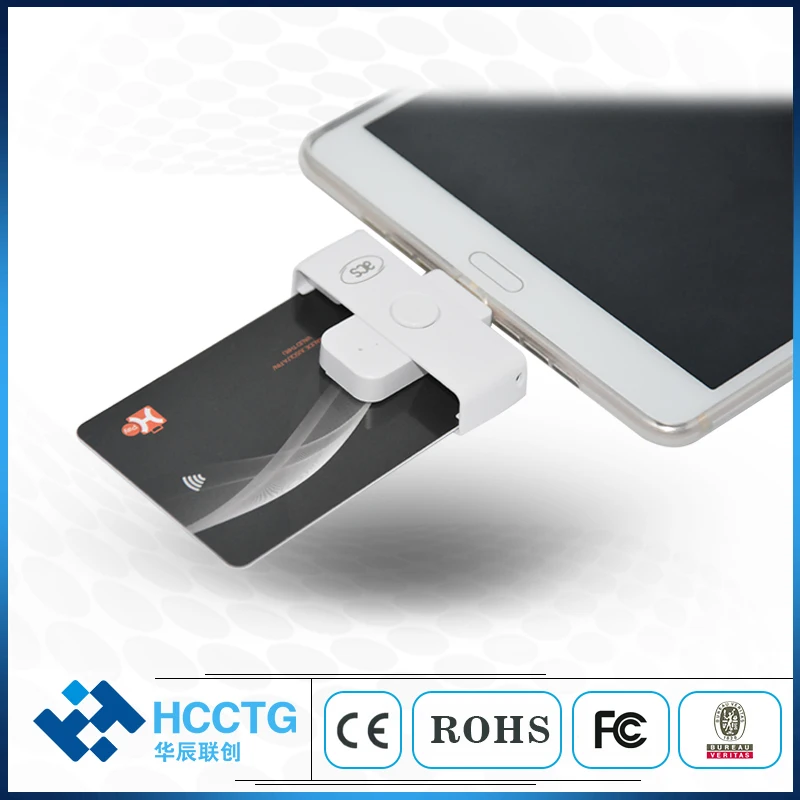

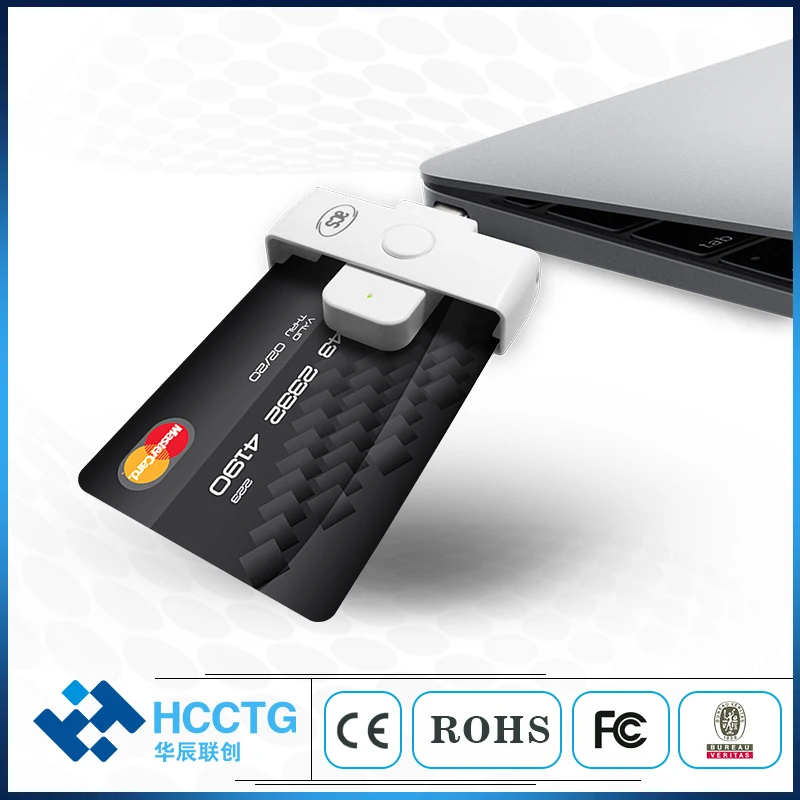

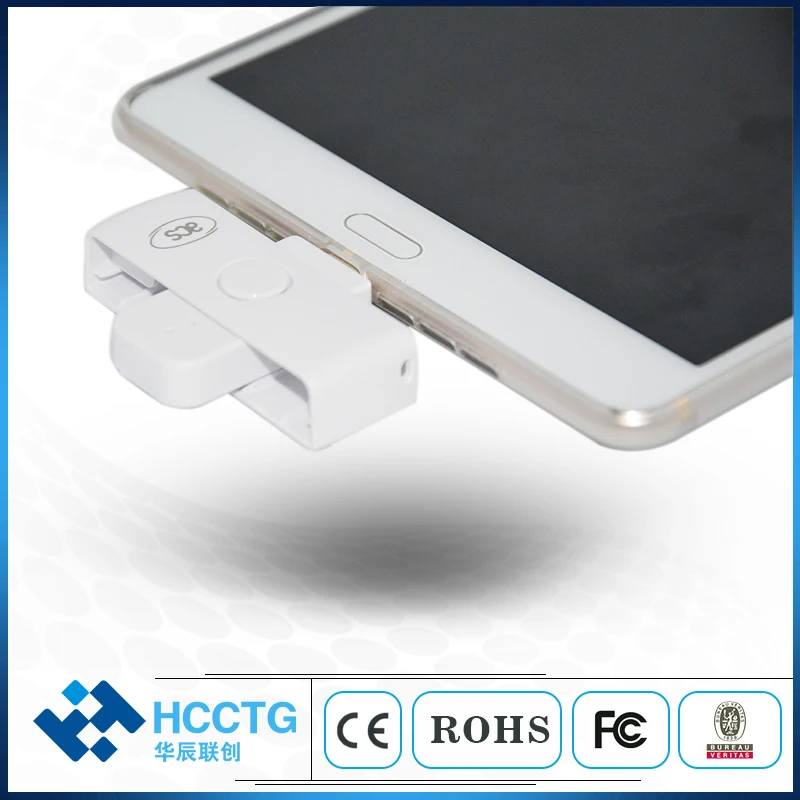

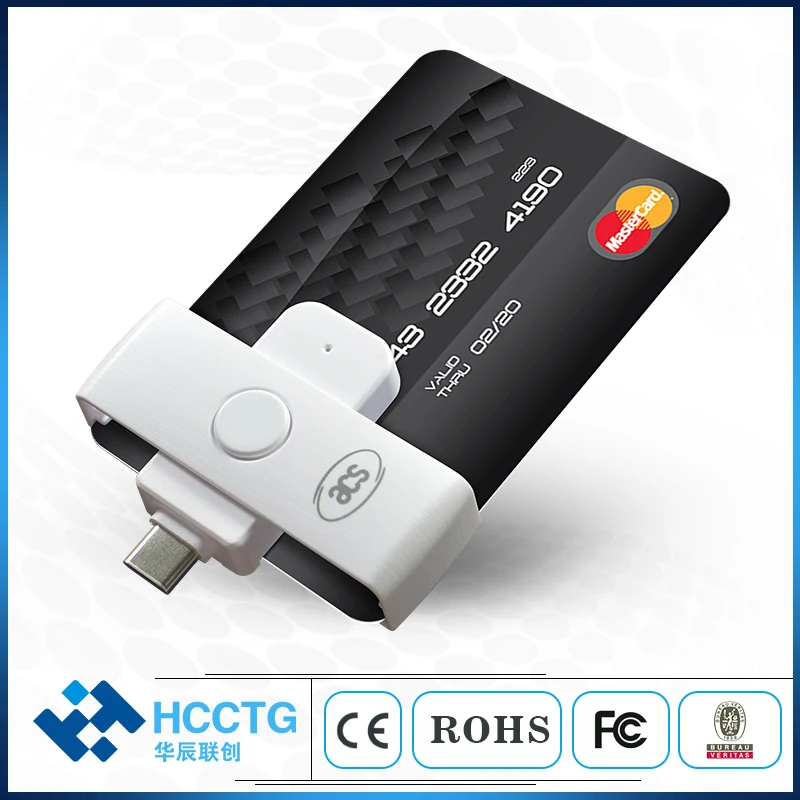

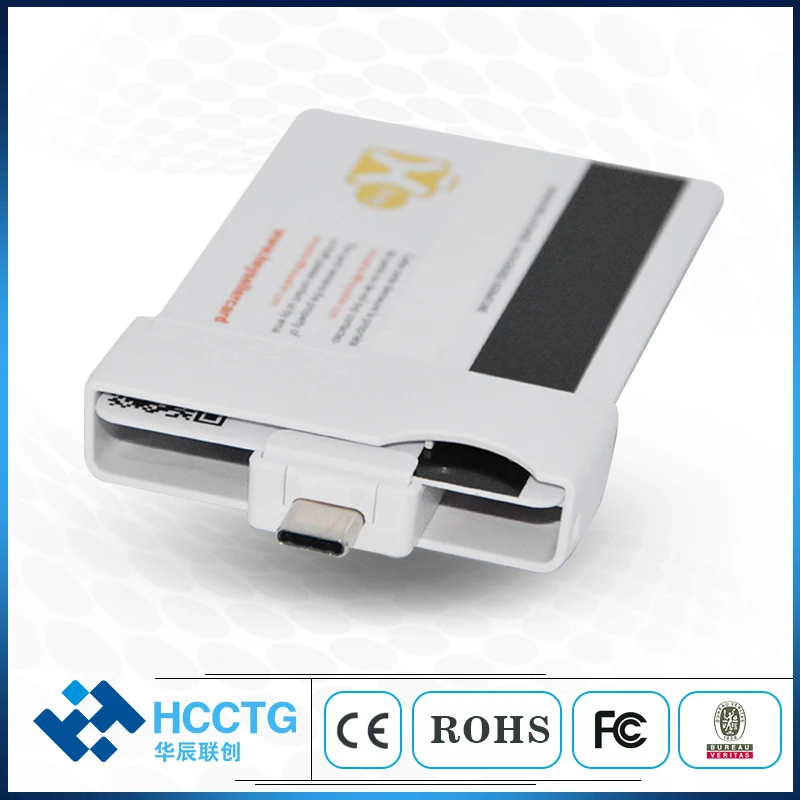

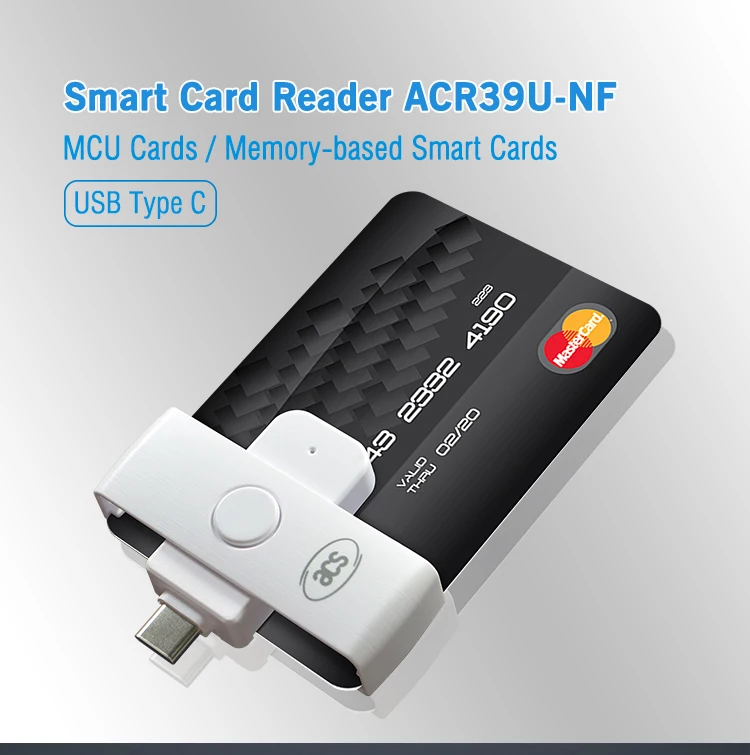

Pocket USB Type-C Contact IC Chip Mobile EMV Smart Card Reader ACR39U-NF

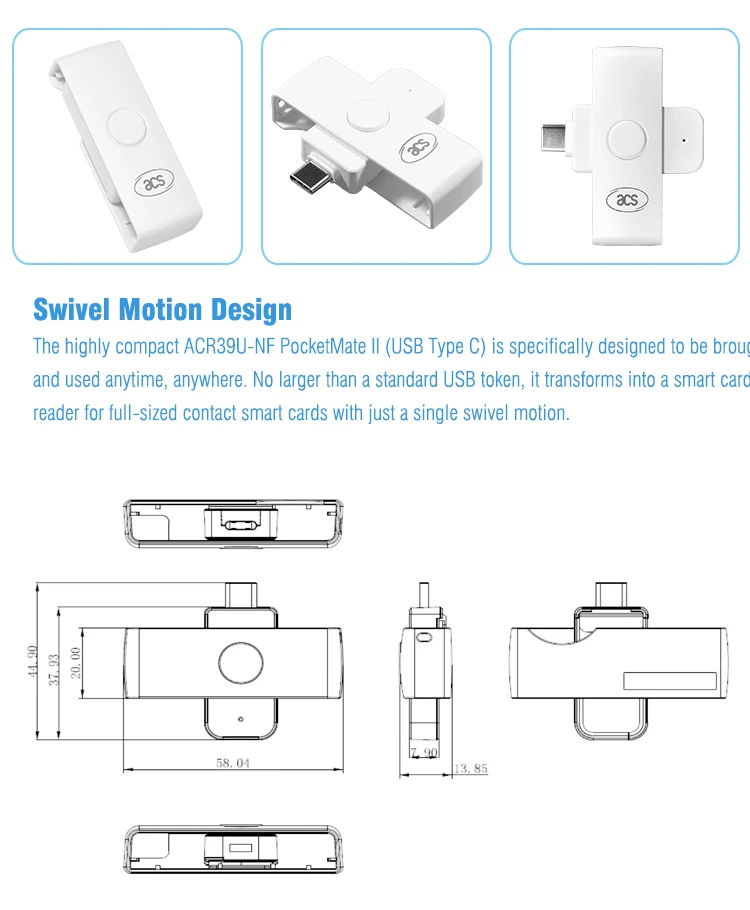

Dimensions	58.0 mm (L) × 20.0 mm (W) × 13.9 mm (H)
Weight	10 g
Color	White

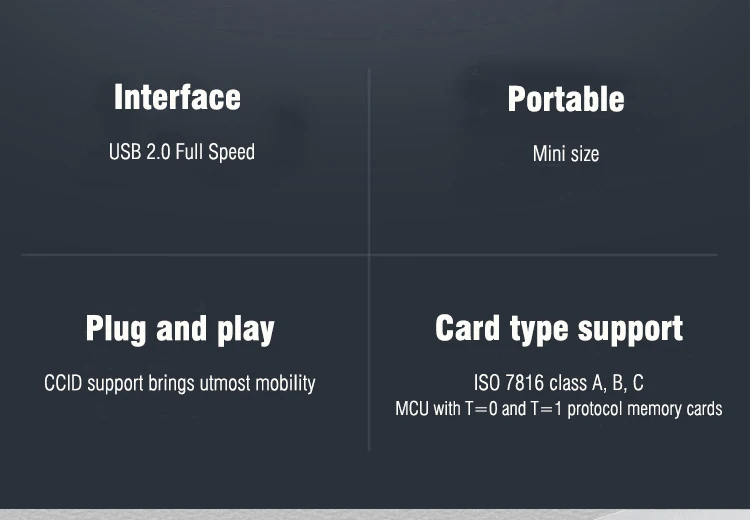

Protocol	USB CCID
Connector Type	Standard Type C
Power Source	From USB por
Speed	USB Full Speed (12 Mbps)
Supply Voltage	5 V
Number of Slot	1 Full-sized Card Slot
Standard	ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol	T=0; T=1; Memory Card Support
Supply Current	Max. 50 mA

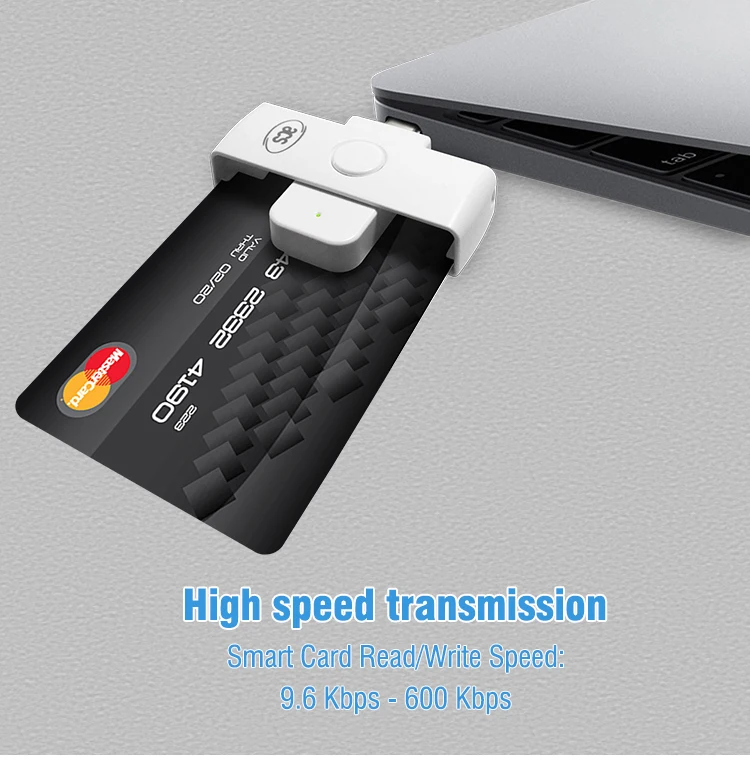

Smart Card Read/Write Speed	9.6 Kbps – 600 Kbps
Short Circuit Protection	(+5) V/GND on all pins
Clock Frequency	4.8 MHz
Card Connector Type	Contact
Card Insertion Cycles	Min. 100,000
LED	Green
PC-linked Mode	PC/SC CT-API (through wrapper on top of PC/SC)
Temperature	0 °C – 60 °C
Humidity	Max. 90% (non-condensing)
MTBF	500,000 hrs
Certifications/Compliance	EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL
Device Driver Operating System Support	Windows® XP,Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 Linux®, Mac OS®, Solaris, Android™ 3.1 andabove

Ø Banking & Payment

Ø e-Healthcare

Ø Network Security

Ø Access Control

Ø Public Key Infrastructure

Ø e-Purse & Loyalty

FAQ

1. Are you manufacturer?

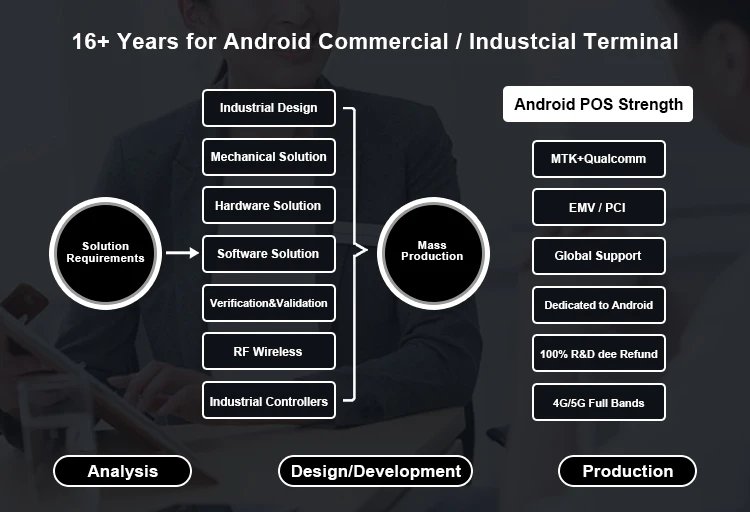

Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14+ years. We can provide OEM / ODM customized service according to our customers’ various application and demands.

2. Would you provide SDK for me?

Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

3. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4.What is the minimum order?

We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales

department.

5. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?

Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.

7. What's the delivery time?

Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.

By Sea: Inform us the Sea Port to check which ship line.

By Air: Inform us the Airport to check which flight.

Or pick up by the customers.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
